52 Blade Screw Pitch Combination Gauge Imperial & Metric

Product Description

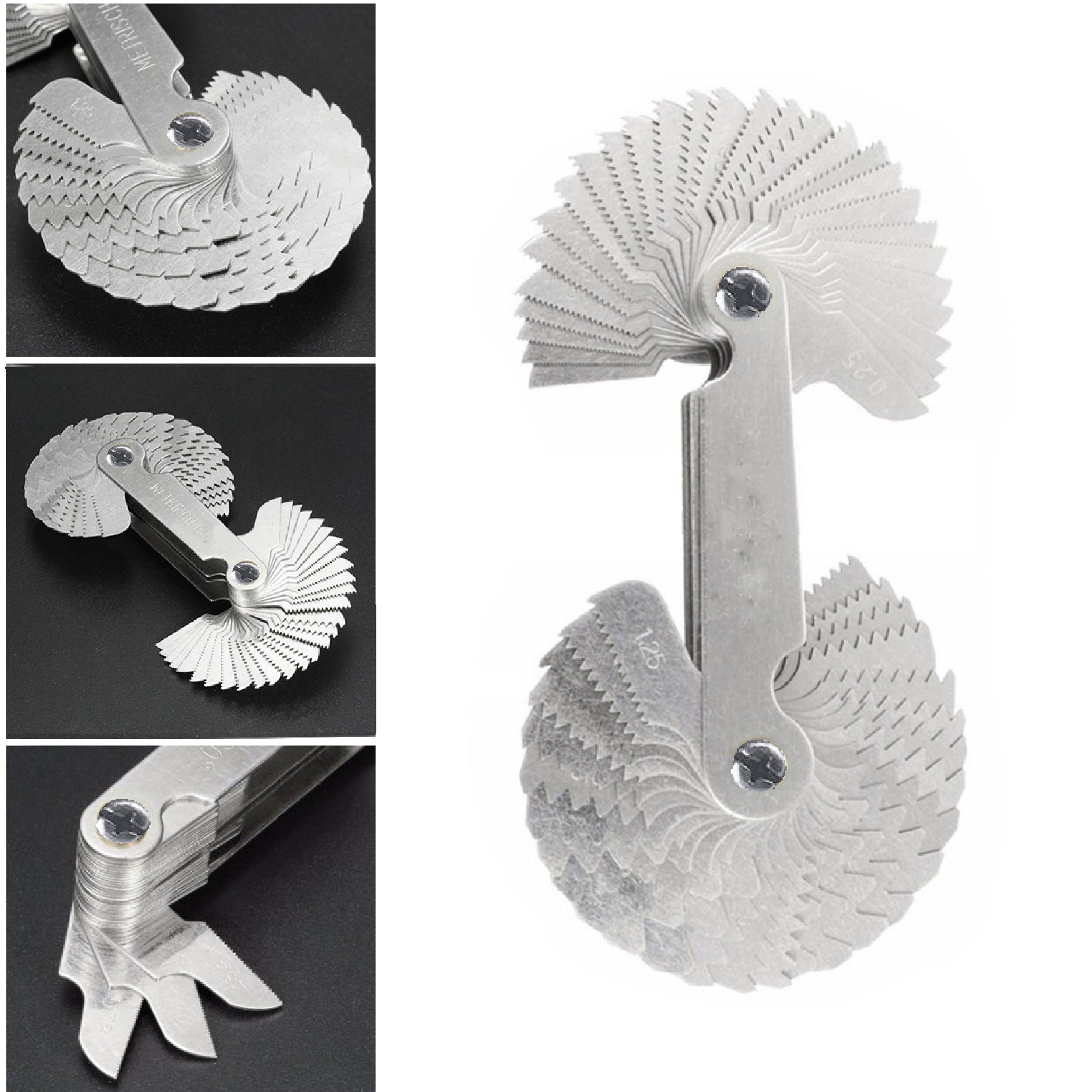

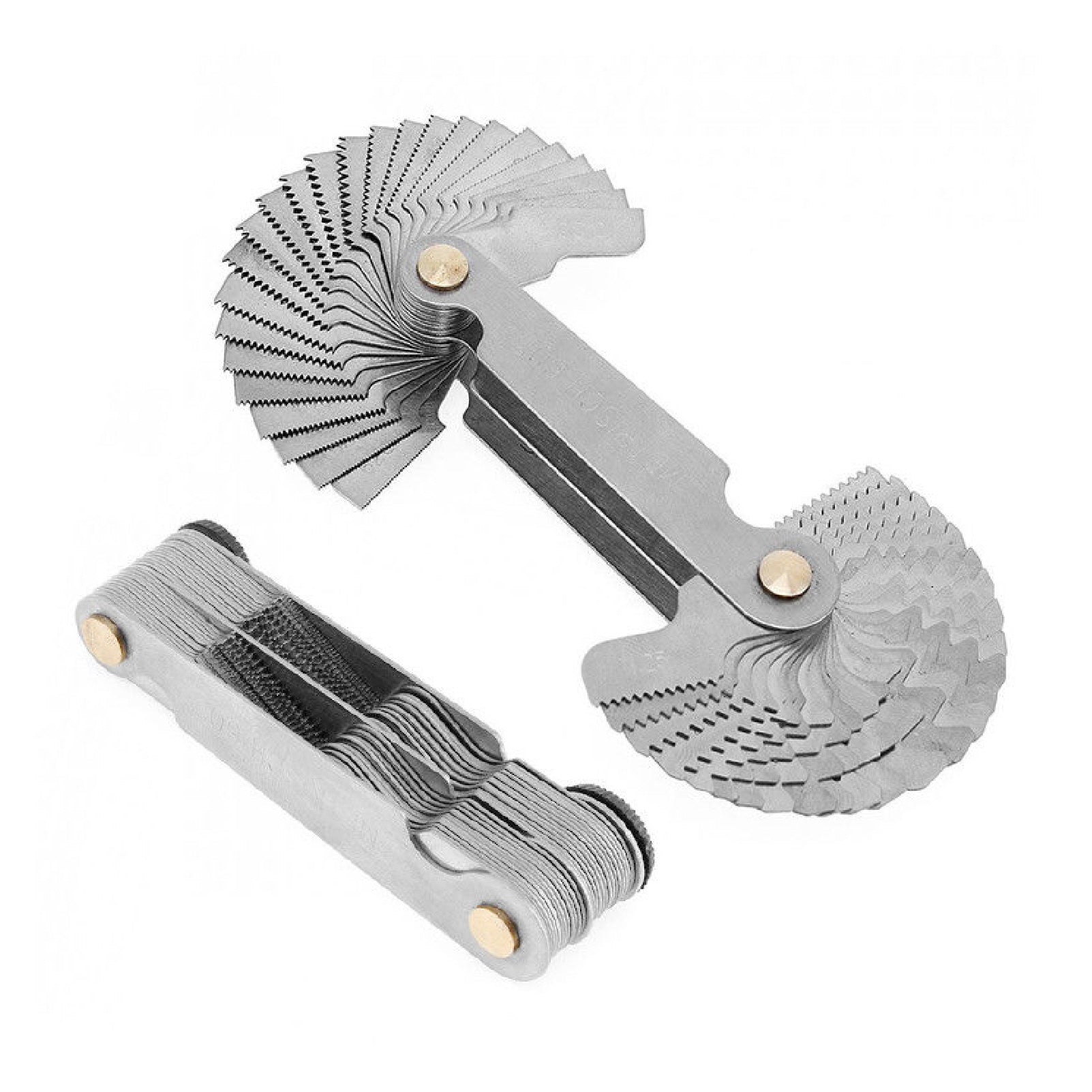

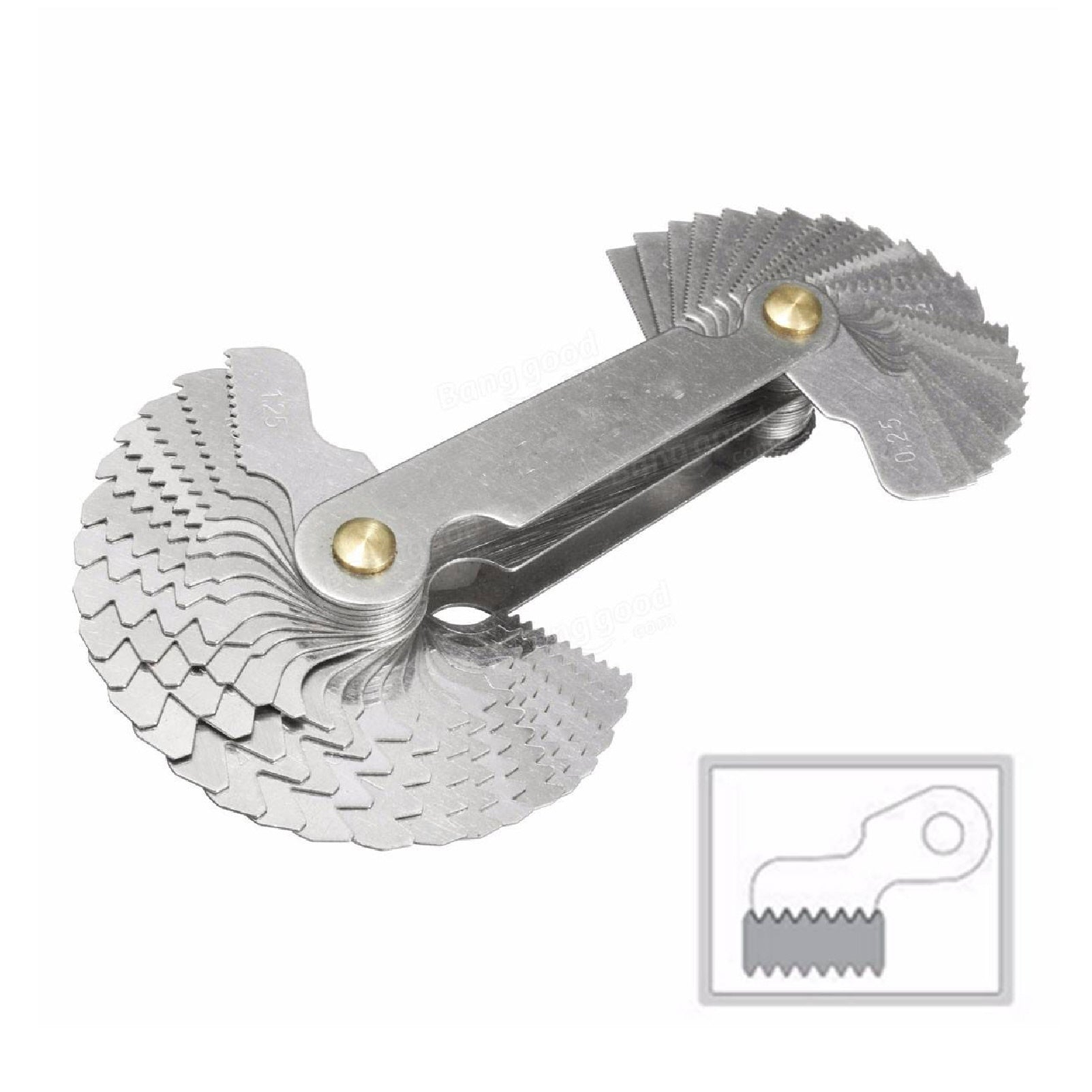

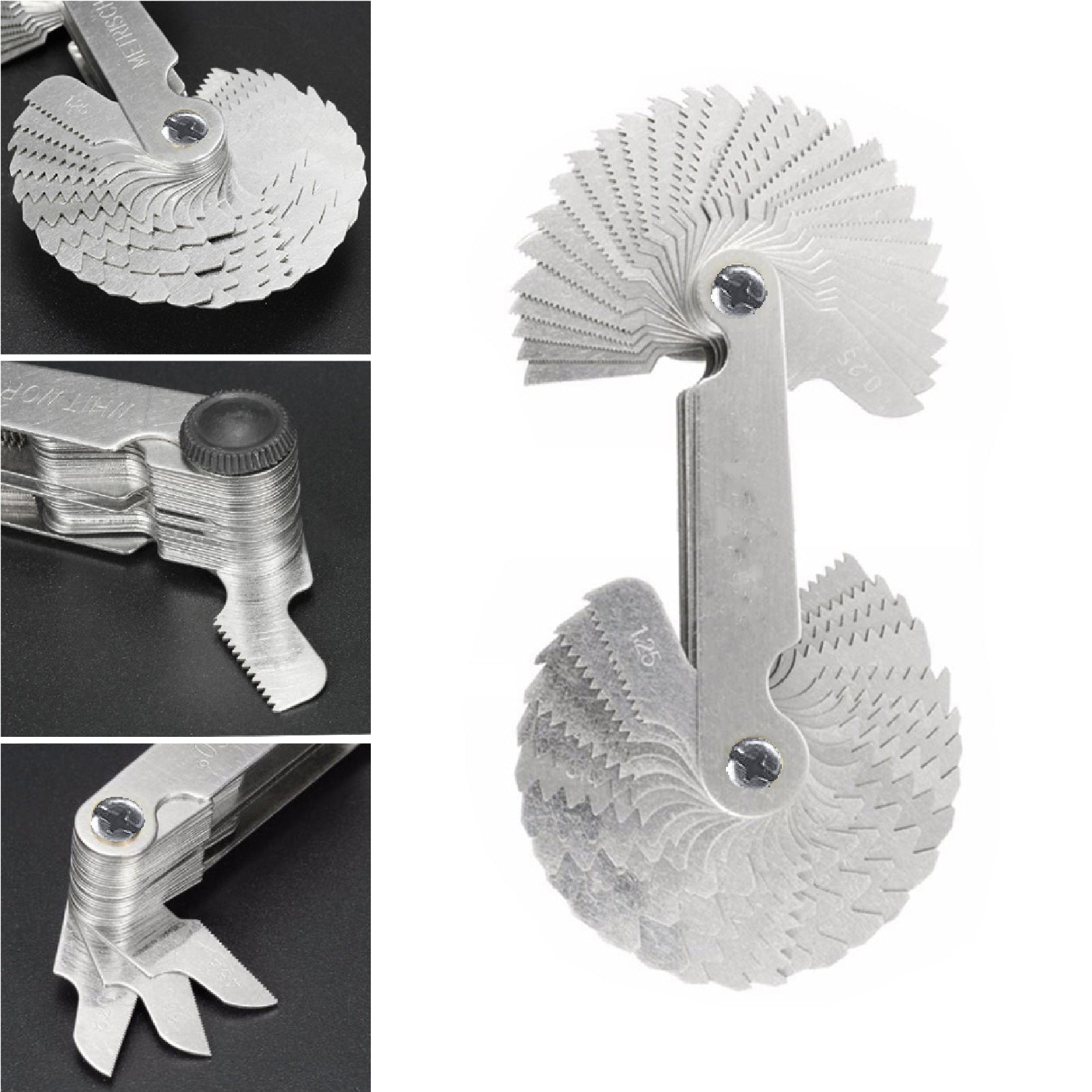

Screw Pitch Combination Gauge

52 Blades

Screw pitch combination measuring gauge.

Designed to determining the gradient for external and internal threads.

Useful for checking tool angle while cutting threads in metal turning lathes.

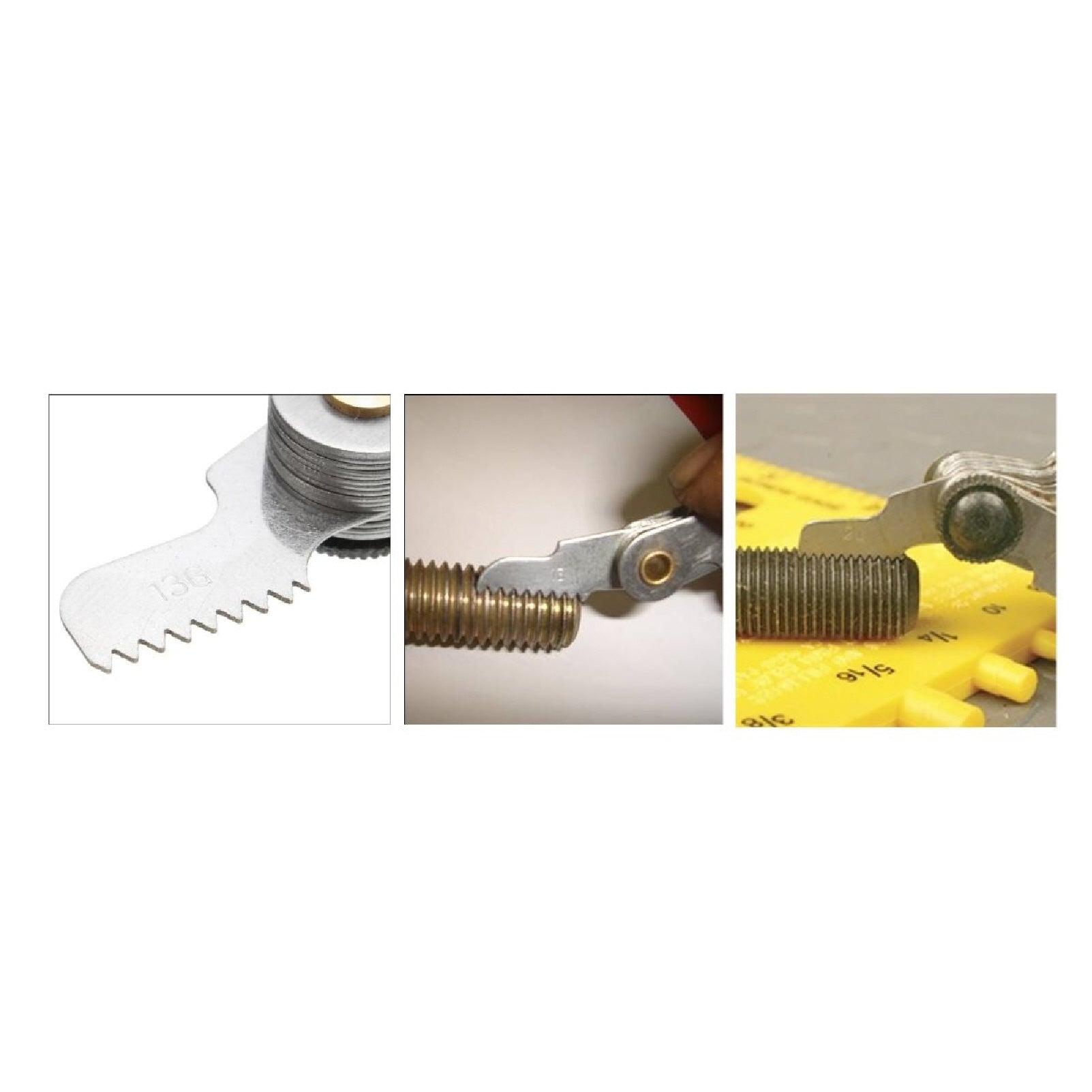

The angles on the thread cutting tool is checked on the V slots in the gauge.

Measure between 0.25 - 6.0mm and 4 -62 BSW.

Blades individually stamped with accurately formed thread profiles.

Tool length: 65mm.

For use in the automotive and engineering industry.

Other tools available in our shop.

Specification:

Material: steel
Accuracy: ±0.07mm

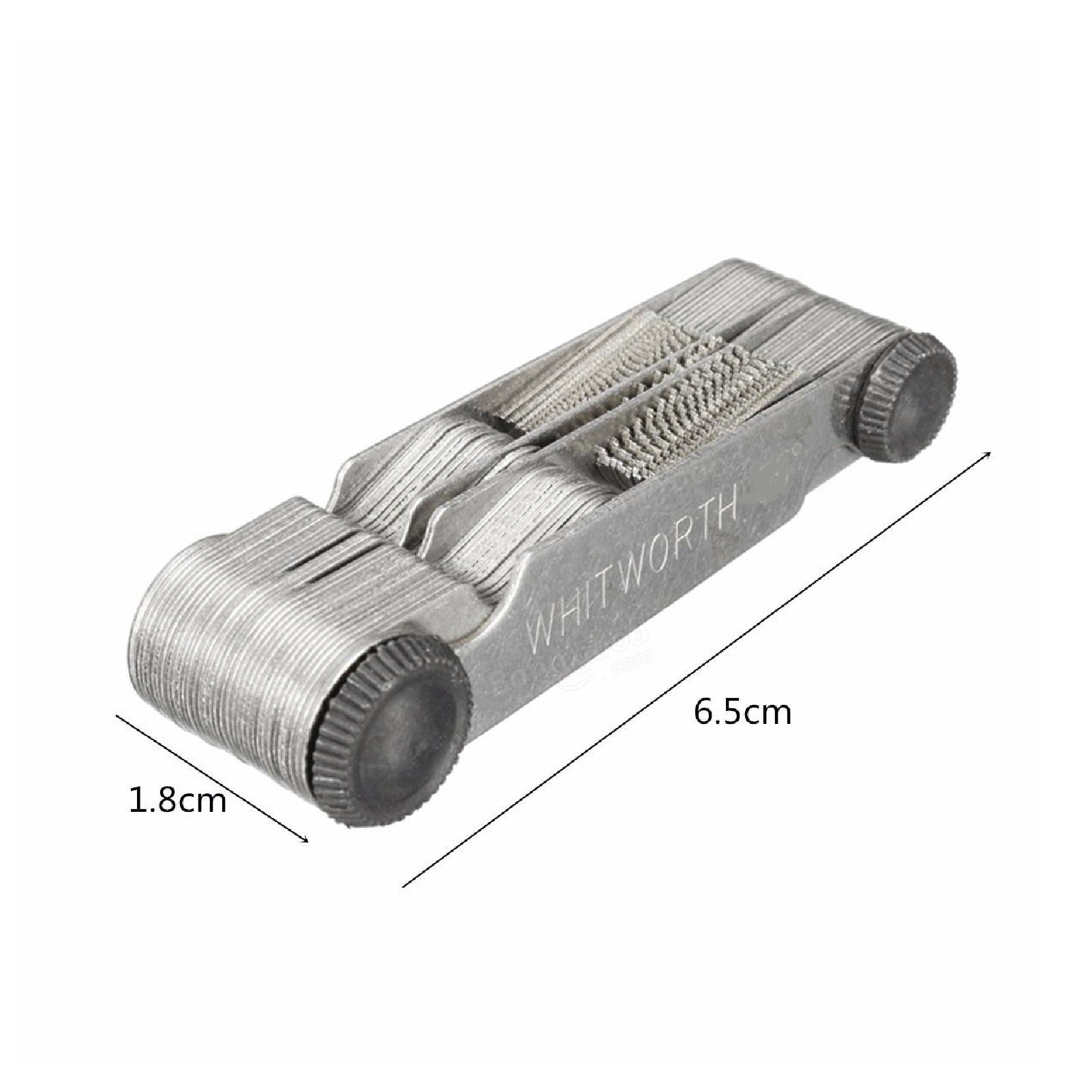

Folded length: 65mm
Width: 18mm

Measuring Range:

Metric  0.25-6.0 mm:    0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75,

0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm

Imperial 4-62TPI:   4, 4 1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16,

18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62TPI
