Murray Turbo Seal Constant Tension Hose Clamps
Size Options in Drop Down Menu

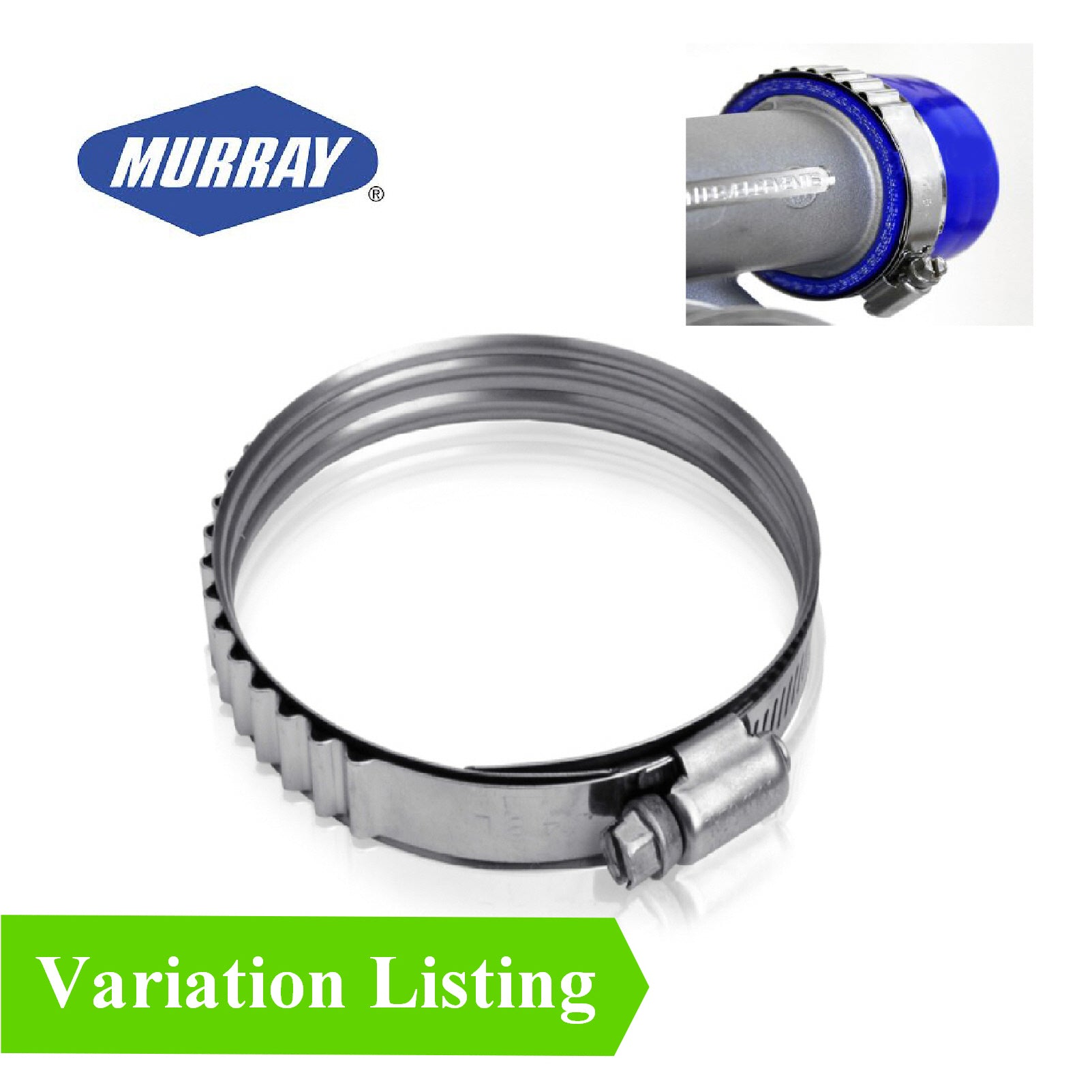

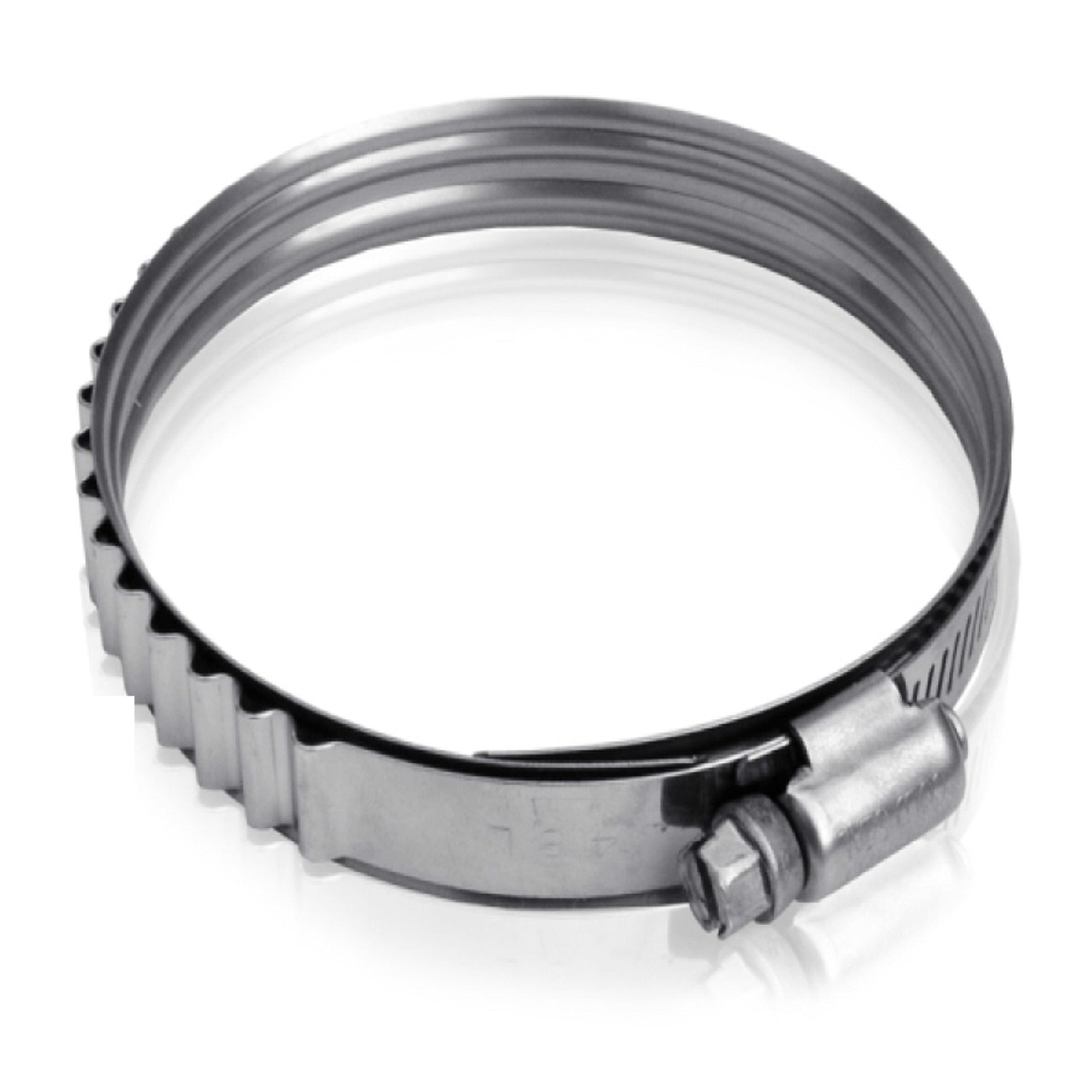

Murray constant tension turbo clamp.
Stainless steel.
Provides dual spring action through convoluted spring band.
Flanged edges protect soft hose compounds.
Used in automotive, motor sports, agriculture, heavy duty and military applications.
Murray Turbo Constant Tension Clamps:

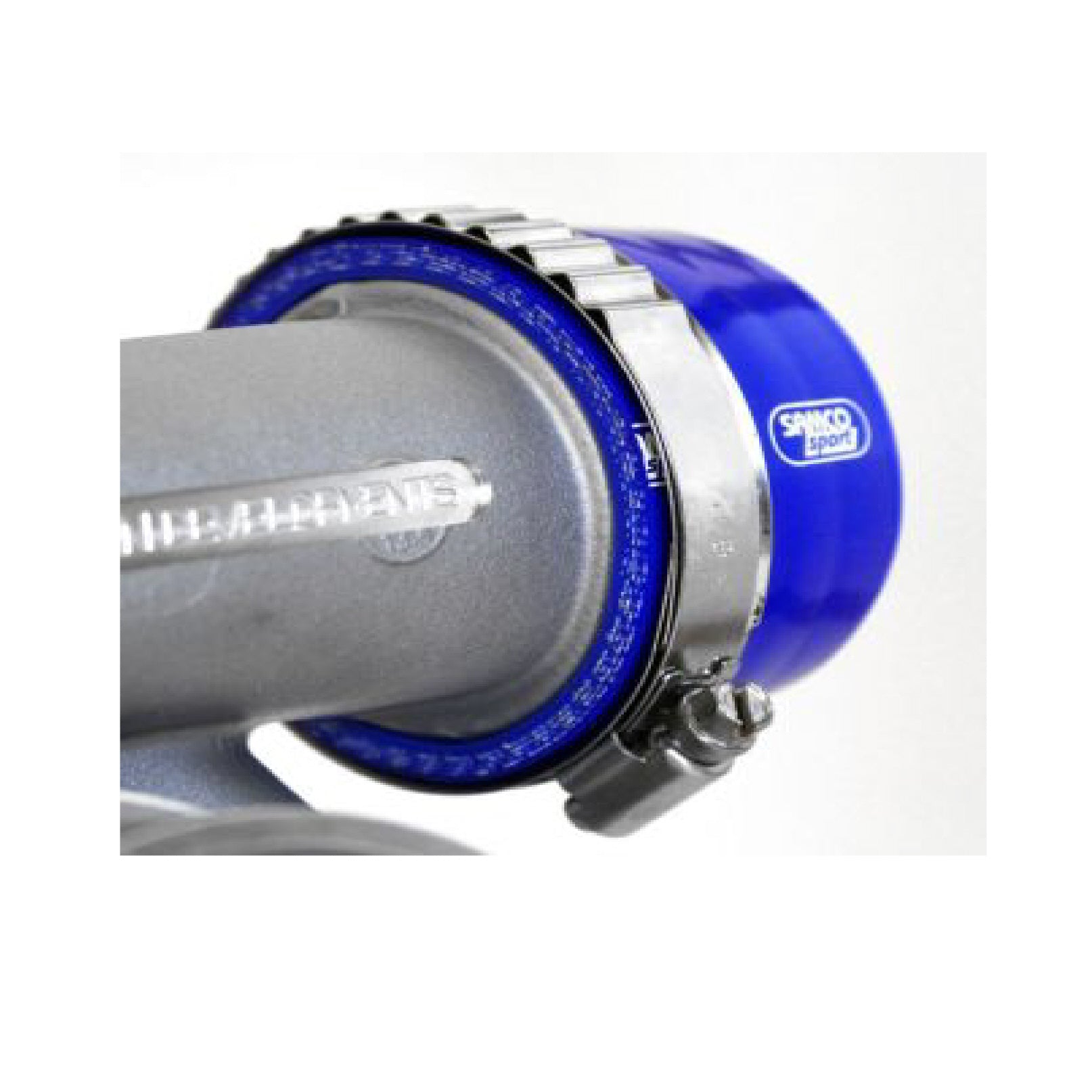

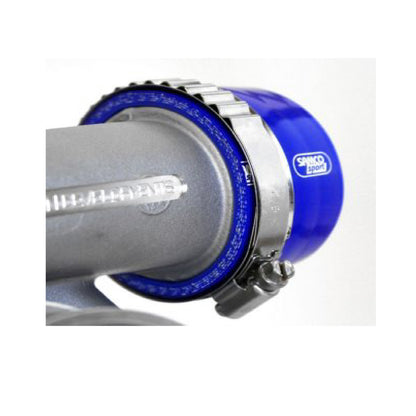

This constant tension design of the clip is recommended for use with silicone hoses when fitted to turbocharger compressor outlets and intercooler pipe work. Its unique design compensates for the effects of thermal cycling and compression set of the hose.
Used by WRC rally teams worldwide, it's fitment will reduce the risk of hoses coming loose and blowing off, which in the case of turbocharged cars, could prevent overspeeding of the turbocharger and inevitable failure.
Constant Tension Turbo Seal Clamps - With a convoluted heat-treated band that provides spring-like tensioning effects for thermal cycling hose applications.

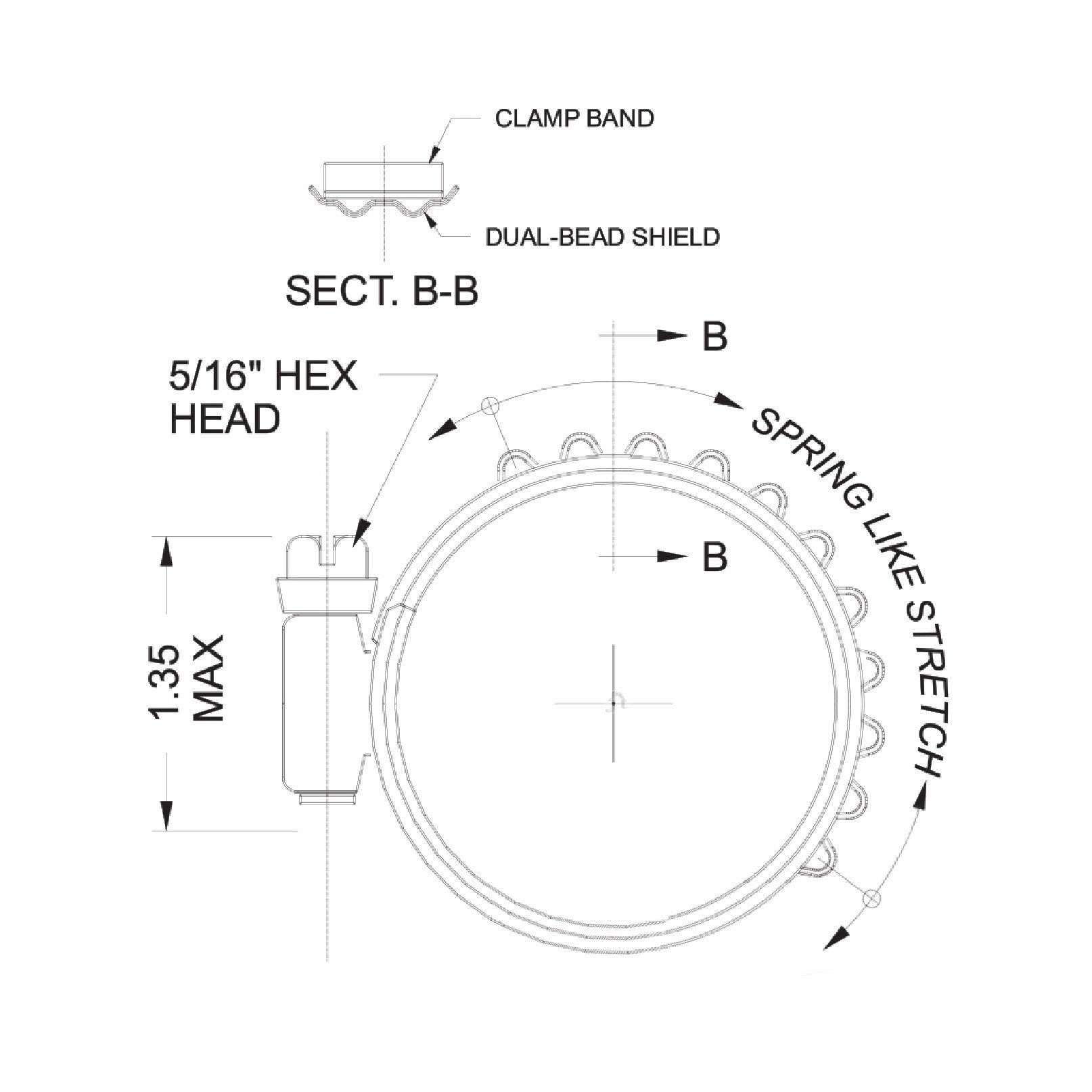

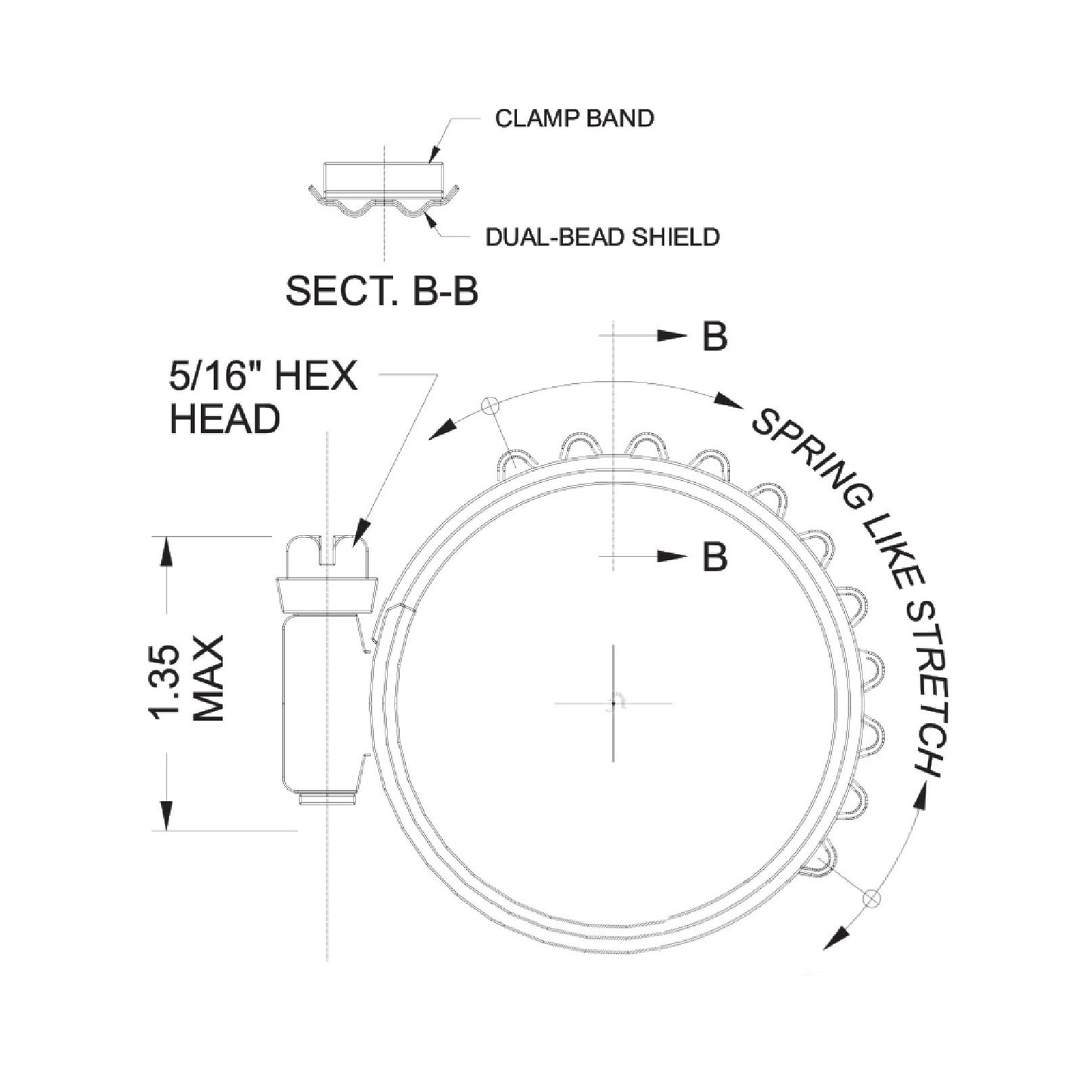

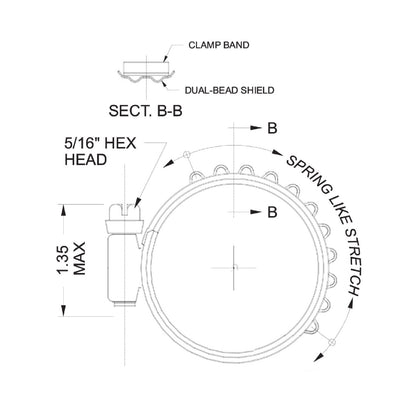

Murray’s unique “DUAL BEAD SHIELD” concentrates band-sealing pressure, increasing performance up to 30% compared to standard smooth liners. Flanged edges protect soft hose compounds from abrasion and wear.

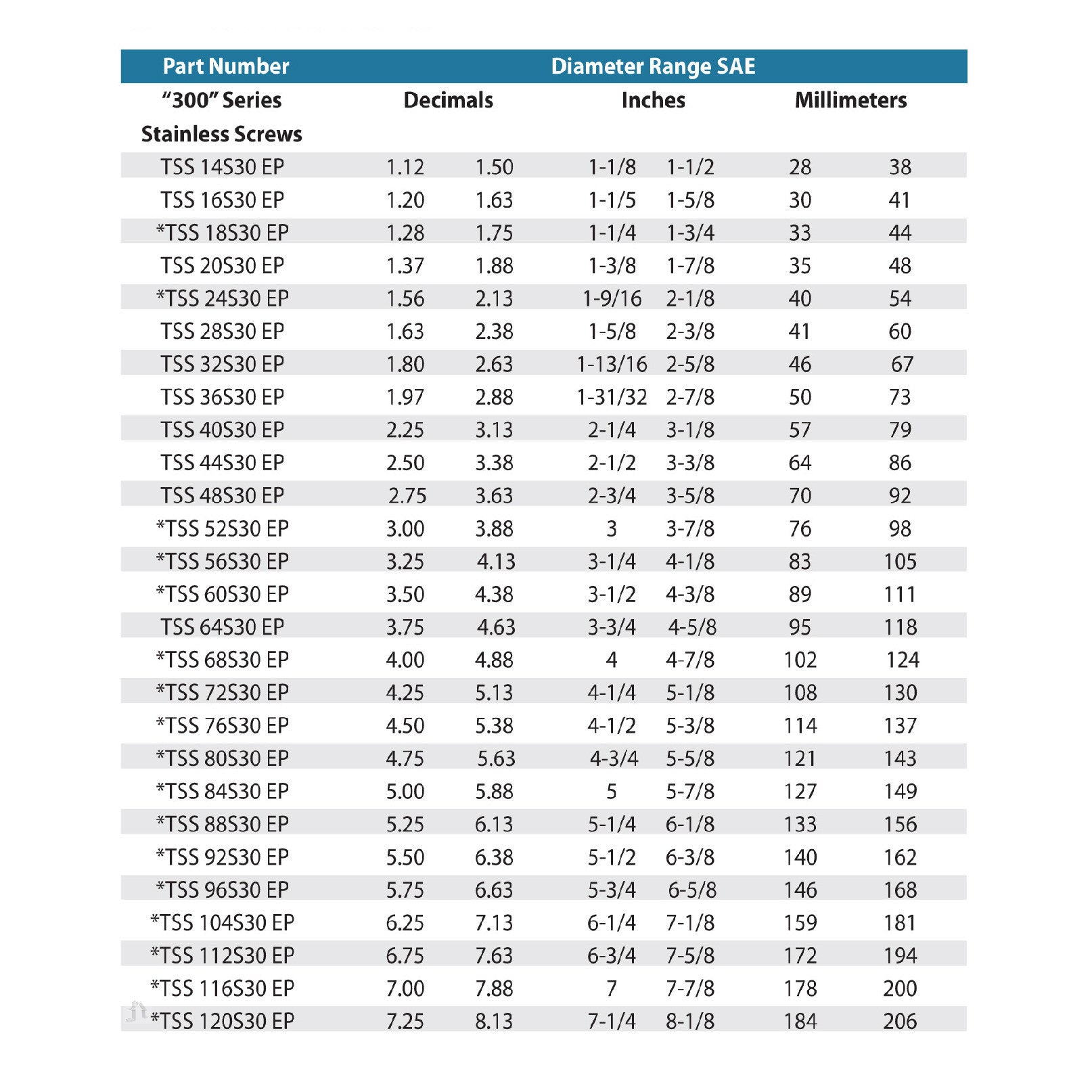

Size Specification:
Size: 28mm - 38mm (1 1/8 - 1 1/2 Inch)
Part Number TSS 14S30
Size: 30mm - 41mm (1 1/5 - 1 5/8 Inch)
Part Number TSS 16S30
Size: 35mm - 48mm (1 3/8 - 1 7/8 Inch)
Part Number TSS 20S30
Part Number TSS 28S30
Part Number TSS 32S30
Parts Number TSS 40S30
Parts Number TSS 48S30
Parts Number TSS 52S30
Parts Number TSS 56S30
Part Number TSS 60S30
Parts Number TSS 68S30
Parts Number TSS 72S30
