Metric Chimney U Nuts Speed Fasteners<br> M4, M5, M6 & M8

Product Description

Metric Chimney U Nut Spire Clips

Menu Options


Chimney U Nuts / U Clips.

Metric sizes: M4, M5, M6 & M8.

Chimney nuts have an additional clamping force over traditional u clips.

U-Nuts provide a strong and secure fixing for applications where two panels require holding together.

These clips are made from high quality zinc plated steel.

Typical applications include motor vehicles, domestic appliances, electrical equipment and machinery.

Used on door trims, roof linings, interior door panels, motorbike fairings, dashboards etc.

Contents

M4   x   20 Clips

M5   x   20 Clips

M6   x   20 Clips

M8   x     20 Clips

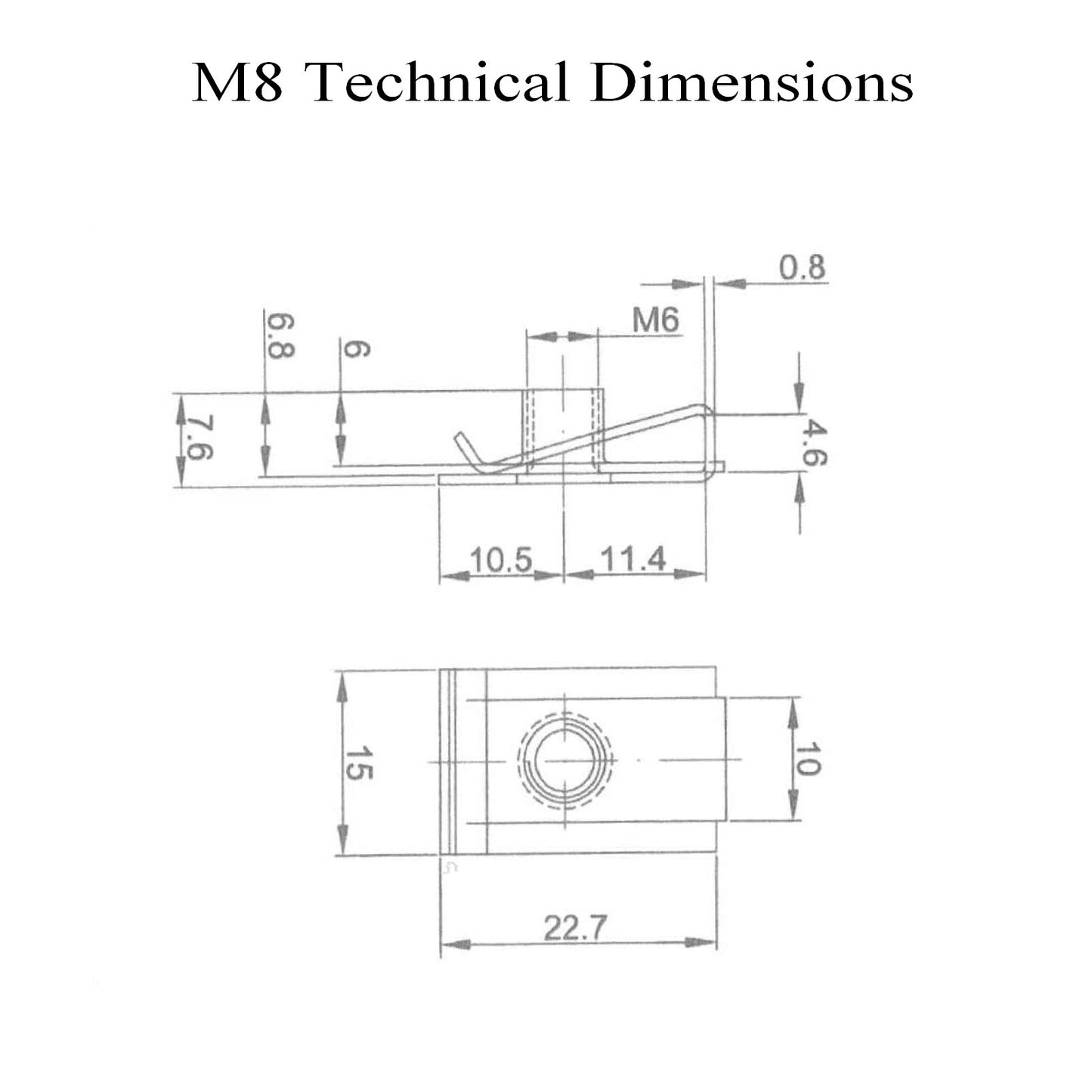

Sizes

M4 Size: 10 x 15mm / Max torque 3.6 Nm
M5 Size: 14 x 21mm / Max torque 3.8 Nm
M6 Size: 15 x 22mm / Max torque 6.6 Nm
M8 Size: 17 x 27mm / Max torque 15.9 Nm

Information

The TR U-nut is a fastener composed of two flaps in clip form with two external
raised thread forms.

The design of this nut means that a double elastic force is exerted when tightened.

This nut can be held in place manually when tightening.

No special tools are required to mount U-nuts, and they can be assembled much
more quickly and easily than conventional nuts.

The self-locking feature means that costly operations such as tapping, welding or riveting can be avoided.

It can also be used with fragile materials such as glass, plastic or enameled surfaces. In these cases the
resilience of the nut avoids cracks or damage to the application area.

This nut locks with tightening torques much lower than for standard nuts due its great resilience.
It is normally mounted on the edge of a panel but it can also be used in a rectangular mounting
hole in the middle of a panel.
