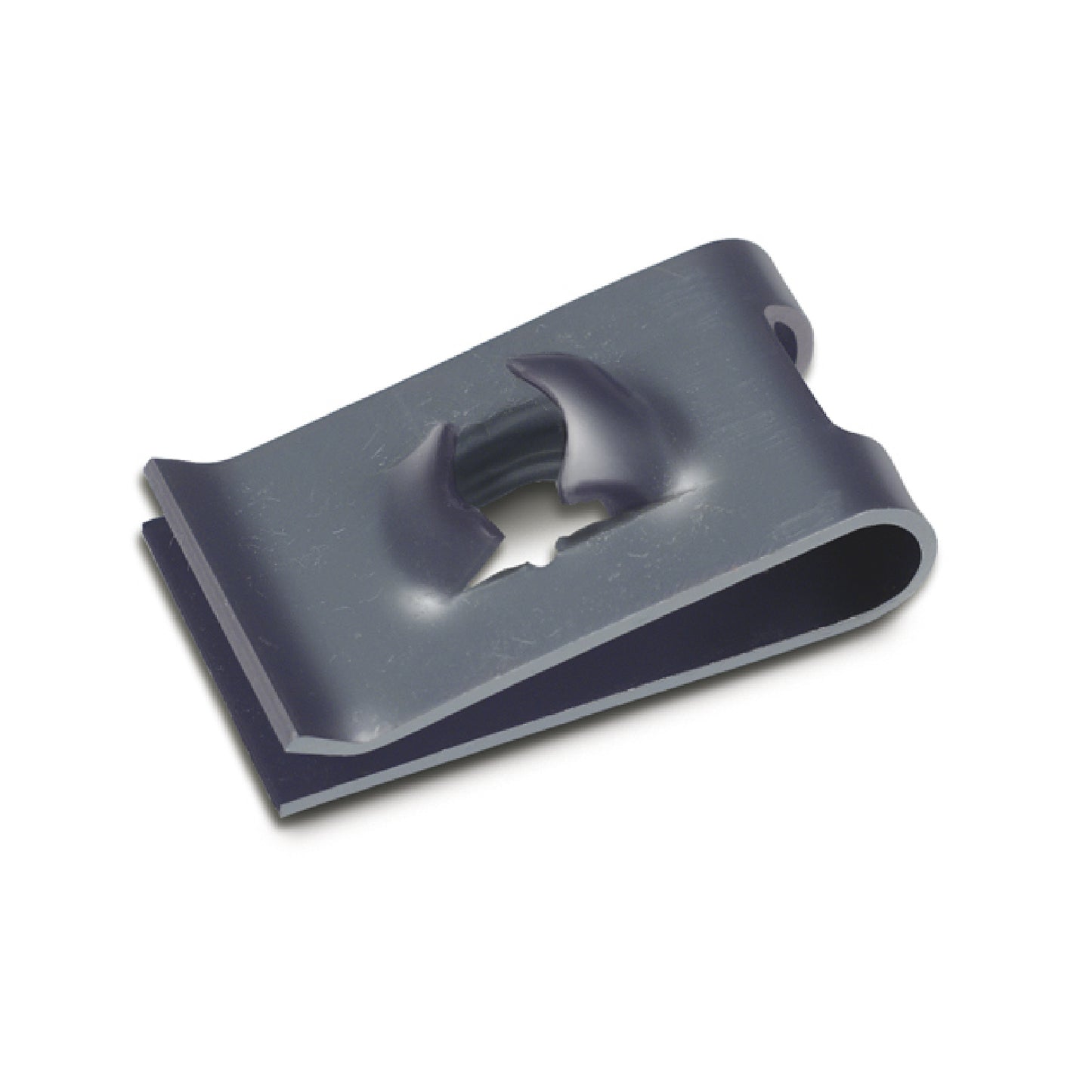

Metric Speed Fastener U Nuts Self Tapping Spire Clips
M4, M5 & M6
Metric Speed Fastener U Nut Spire Clips
U Nuts / U Clips.
Metric Sizes: M4, M5 & M6.
U-Nuts provide a strong and secure fixing for applications where two panels require holding together.
Typical applications include motor vehicles, domestic appliances, electrical equipment and machinery.
Used on door trims, roof linings, interior door panels, dashboards etc.
M4 Size: 11 x 17mm
M5 Size: 12 x 18mm
M6 Size: 14 x 21mm
The TR U-nut is a fastener composed of two flaps in clip form with two external
raised thread forms.
The design of this nut means that a double elastic force is exerted when tightened.
This nut can be held in place manually when tightening.
No special tools are required to mount U-nuts, and they can be assembled much
more quickly and easily than conventional nuts.
The self-locking feature means that costly operations such as tapping, welding or riveting can be avoided.
It can also be used with fragile materials such as glass, plastic or enameled surfaces. In these cases the
resilience of the nut avoids cracks or damage to the application area.
This nut locks with tightening torques much lower than for standard nuts due its great resilience.
It is normally mounted on the edge of a panel but it can also be used in a rectangular mounting
hole in the middle of a panel.
