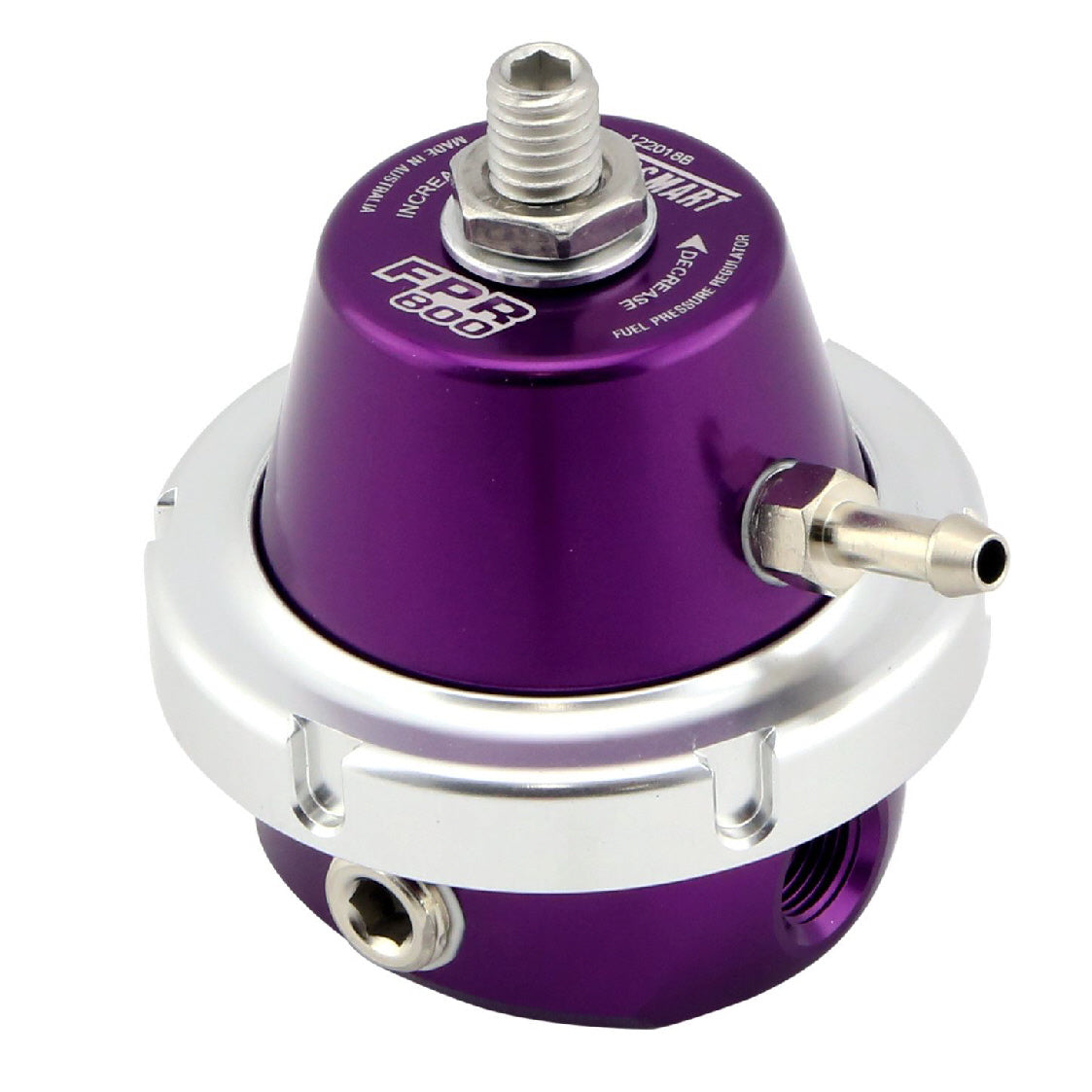

Turbosmart Fuel Pressure Regulator - FPR800 - 2017 - Purple TS-0401-1107

Product Description

FPR800 Fuel Pressure Regulator Suit 1/8 NPT - Purple

TS-0401-1107

Turbosmart’s FPR800 is a motorsport proven fuel pressure regulator capable of supporting up to 800HP fuel systems.

With Stainless Steel valve and seat, MILSPEC diaphragm and industry leading 1:1 fuel ratio control, there’s no application to harsh for the FPR800.

Available in Black, Blue, Red and Purple the FPR800 is easily at home in race application or modified street car.

Featuring two 1/8″ NPT inlet ports, one 1/8″ NPT return port and 1/8″ gauge port, 30-90 PSI base pressure adjustment, 1:1 ratio, premium MILSPEC diaphragm and stainless steel valve + seat allow for ANY fuel type including E85 and is suitable for engines with up to 800hp fuel systems.

Turbosmart FPR’s feature a non-directional bias to regulation, so no matter where the fuel comes in they will regulate the same.

For other Turbosmart products please visit our shop.

Supplied With

Fuel Pressure Regulator Mounting bracket
Retaining clip
Vacuum fitting
Gauge port blank
Turbosmart Decal

Features

EFI fuel regulator
3 x 1/8″ NPT ports
1/8″ NPT Gauge port
Capable of regulating up to 800hp of fuel flow
1:1 manifold pressure ratio with no load losses
30-90psi base pressure range
Stainless steel internals providing maximum integrity and reliability
Suitable for all fuel types
Operational between -35ºC to +200ºC
MILSPEC diaphragm
Reference port is 1/16 NPT with hose end nipple supplied
Manufactured, Assembled and Validated in-house at Turbosmart HQ
