£3.39


Product Description





Waterproof Electrical Wire Connector



Menu Options

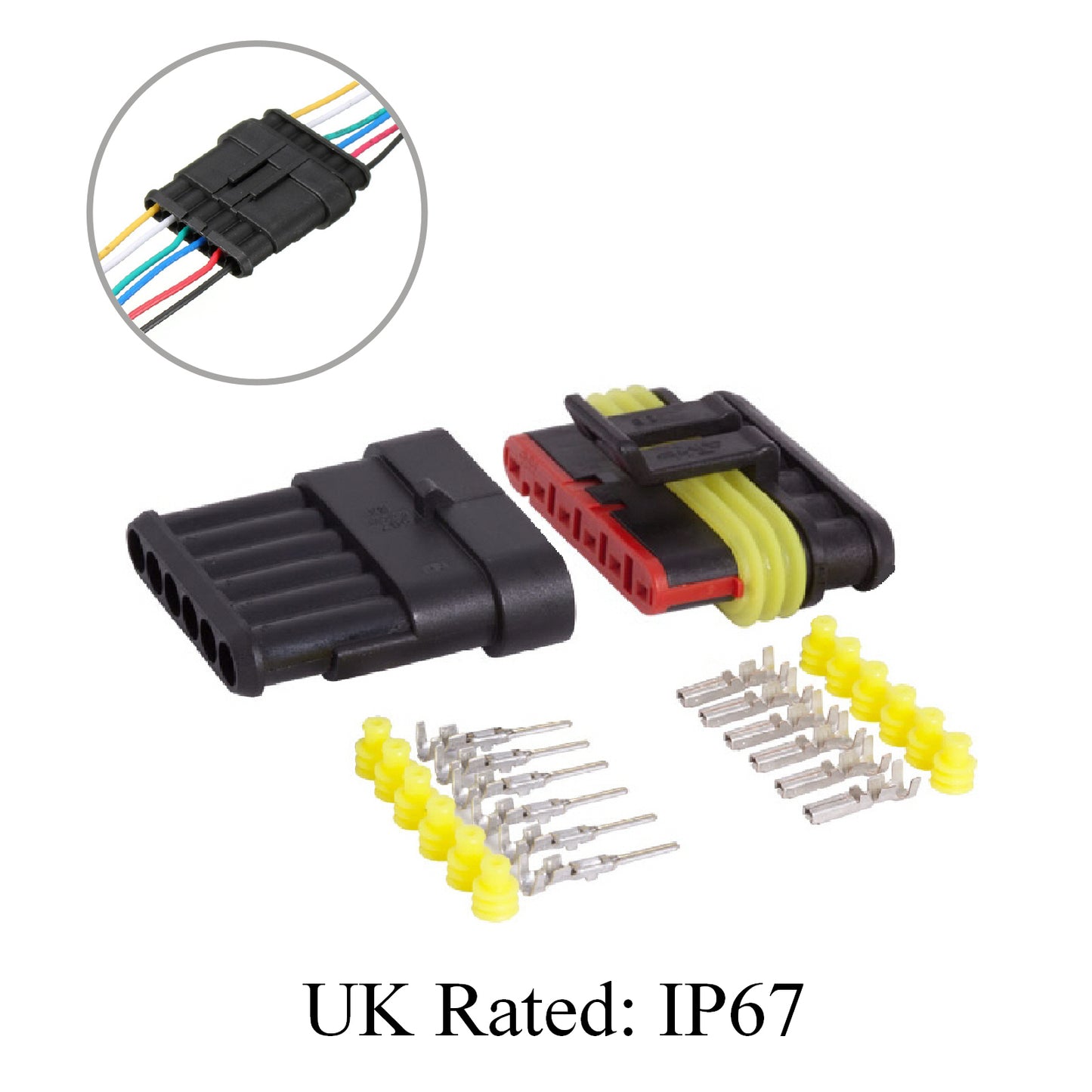

Superseal waterproof connector.

Male & female pair complete with all terminals and cable seals.

Designed for applications where a water-tight connection is required.

Ingress protection (IP) rating: IP67.

Dust tight and resists immersion in 1m depth of water for 30 mins.

Suitable for cables from 0.5 - 1.5mm²

Suitable for cars, motorbikes, trucks, caravans, boats, jet ski and marine, etc.





Specification:


Current rating: 14A max (per way)
Voltage rating: 24V DC max
Ingress Protection (IP) rating: IP67 (dust-tight and resists immersion in 1m depth of water for 30 mins)
Operating temperature range: -40°C to 125°C
Cable size: 0.5 - 1.5mm²
Terminal material: Tinned brass (tab) & tinned phosphor bronze (receptacle)
Connector body material: Glass-filled nylon 6.6
Cable and housing seal material: silicone rubber
Chemical resistance: Petrol, diesel, oils, anti-freeze



Type Auto Electrical
Vendor n/a
Tags Auto Electrical
